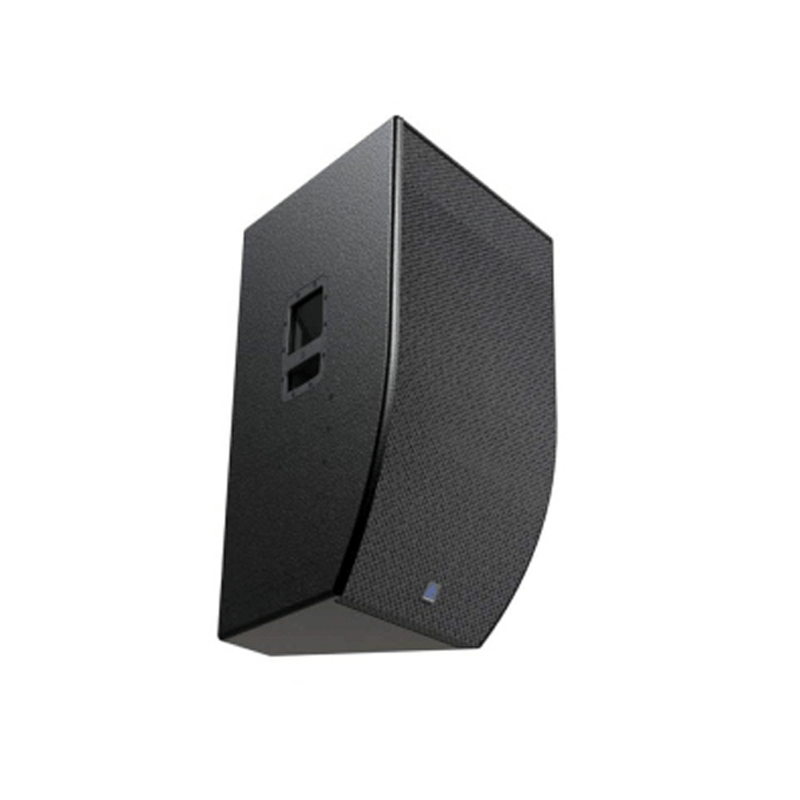

■ Two way spherical source element
■ One 15 inch low frequency driver
■ One 3 inch coil compression driver
■ Point source arrangement
■ SSA™ waveguide
■ 45° horizontal coverage
■ 60°(+15° – 45°) vertical coverage
■ Designed for high performance fixed installation
■ OEM factory presets for approved digital processors
| Frequency range with processor (±3dB) | 50 Hz to 20 kHz | |
| Peak level at 1m, f>65Hz | 131 dB SPL | |
| Nominal horizontal coverage@-6dB³ | 45° | |
| Unit nominal vertical coverage@-6dB³ | 60°(+15°up, -45°down) | |
| Transducers | 1 x 15" weatherproof loudspeakers 1 x 1. 4" throat compression driver coaxially mounted | |
| Net unit weight | 40 kg 88 Ibs | |
